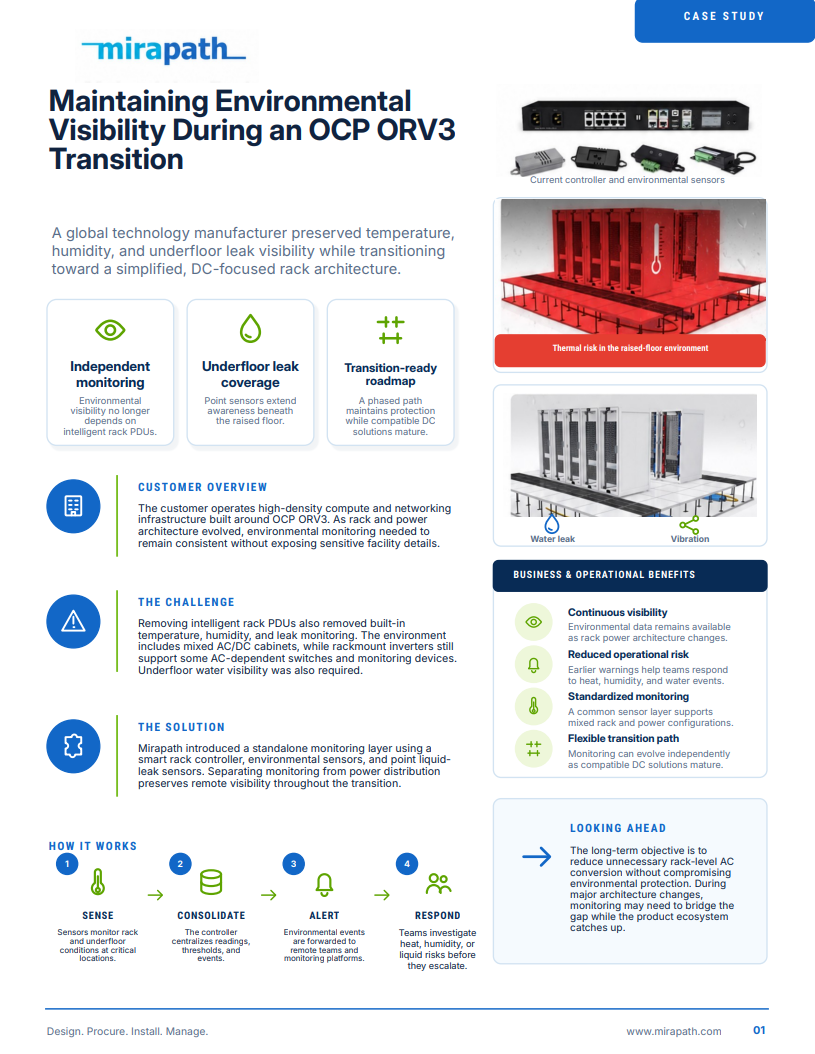

Case Study | OCP ORV3 Environmental Monitoring
A global technology manufacturer needed to preserve temperature, humidity, and underfloor leak visibility while moving toward a simplified, DC-focused OCP ORV3 architecture. Mirapath used its Design, Procure, Install, and Manage methodology to create a standalone monitoring layer that could support the current mixed AC/DC environment and evolve with the customer's transition roadmap.
Removing intelligent rack PDUs created a secondary infrastructure challenge. The devices also supported environmental sensing, so taking them out of the architecture risked removing information operations teams used to identify heat, humidity, and water events.
The customer could not treat the project as an immediate move to an entirely DC-powered environment. Rackmount inverters continued to support some AC-dependent switches and monitoring devices. The replacement monitoring strategy therefore had to protect current operations without forcing a premature commitment to an unvalidated DC monitoring platform.
At a Glance
- Customer: A global technology manufacturer operating high-density compute and networking infrastructure built around OCP ORV3.
- Requirement: Preserve temperature, humidity, and underfloor leak visibility after removing intelligent rack PDUs from a mixed AC/DC environment.
- Mirapath approach: Design and deploy an independent monitoring layer using a standalone controller, environmental sensors, and point liquid-leak sensors.
- Operational result: Environmental readings and alerts remained available as the rack power architecture evolved, with a path toward validated DC-compatible monitoring.
Why the Transition Created a Monitoring Risk
Infrastructure components often perform more than their primary function. In this environment, the intelligent rack PDUs did not only distribute power. They also supported temperature, humidity, and leak sensing.
Removing those devices without replacing their monitoring functions could have created an operational blind spot. A temperature excursion, abnormal humidity condition, or underfloor water event might have gone undetected until it developed into a larger equipment or service concern. That would make the response more reactive and add risk to a modernization project intended to simplify the environment.
The customer needed more than replacement sensors. It needed a monitoring architecture that could remain useful through the current mixed AC/DC state and adapt as the future rack-power design and compatible product options developed.
Design: Separate Monitoring From Power Distribution
Mirapath began by evaluating the complete operating environment: available power, sensor requirements, controller topology, alerting needs, integration requirements, and migration timing. The design also had to cover three specific risks:
- Temperature at critical rack positions
- Humidity within the rack environment
- Potential water events beneath the raised floor
Two objectives shaped the architecture. First, it had to restore the environmental monitoring capabilities being lost with the intelligent rack PDUs. Second, it had to remain useful as the customer's rack power design changed.
Mirapath addressed both objectives by decoupling environmental monitoring from power distribution. A standalone controller, environmental sensors, and point liquid-leak sensors formed an independent layer rather than tying visibility to the equipment being removed.
Create a Clear Operational Flow
- Sense: Sensors monitor rack and underfloor conditions at critical locations.
- Consolidate: The controller centralizes readings, thresholds, and environmental events.
- Alert: Events are forwarded to remote teams and connected monitoring platforms.
- Respond: Operations teams investigate heat, humidity, or liquid risks before the conditions escalate.
This structure created a direct path from a physical condition in the environment to information the operations team could use, without making that path dependent on the rack PDU architecture.
Procure: Validate the Current and Future Fit
The immediate procurement requirement was a platform capable of replacing the distributed sensing functions lost with the intelligent rack PDUs. Mirapath selected a standalone controller and environmental sensors that supported multiple sensor connections and centralized readings, thresholds, and events.
Integration was treated as a requirement to validate, not an assumed feature. Depending on the selected monitoring platform and the customer's management environment, data could be connected through SNMP, Modbus, or APIs. The applicable interfaces and topology still had to be confirmed for the deployment.
Mirapath also evaluated the path toward DC-powered monitoring. A compatible approach could help reduce AC dependence, but only after validating power, topology, sensor connectivity, and platform compatibility for the future OCP ORV3 environment. The near-term platform was therefore positioned as part of a phased roadmap rather than presented as an automatically final ORV3 solution.
Match Leak Detection to the Physical Risk
Point liquid-leak sensors provided targeted awareness beneath the raised floor. For a larger or more complex area, continuous sensing cable paired with a distance-read controller could provide broader coverage and greater leak-location visibility.
The right approach depends on the physical environment, potential water sources, required sensor density, integration needs, and desired coverage. Mirapath aligned the technology choice with those conditions instead of treating one leak-detection method as universally appropriate.
Install: Restore Visibility With a Standalone Layer
With the architecture and technology selected, Mirapath deployed the monitoring layer independently of the rack power transition. Environmental sensors were positioned at critical rack locations for temperature and humidity monitoring, while point leak sensors extended awareness into targeted areas beneath the raised floor.
The standalone controller consolidated readings and environmental events. Configurable thresholds identified conditions requiring attention, and remote notifications enabled operations teams to begin investigating potential risks.
Continuous Visibility
Temperature, humidity, and leak information remained available as the customer changed its rack power architecture.
Reduced Operational Risk
Configurable thresholds and remote alerts helped teams identify environmental events before they developed into larger problems.
Standardized Monitoring
A common controller-and-sensor layer supported the mixed rack environment, including equipment with different AC and DC dependencies.
A Flexible Transition Path
The customer could install and expand monitoring without waiting for every component of the future-state architecture to become available.
The installation therefore did more than replace individual sensors. It established an environmental monitoring system that could continue operating throughout the infrastructure transition.
Manage: Support the Evolving Architecture
Environmental monitoring does not become operationally reliable merely because the hardware is installed. Thresholds need to be tested, notifications must reach the appropriate teams, integrations must deliver usable information, and sensor coverage must continue to reflect the physical environment.
Through the Manage phase, Mirapath helps validate:
- Environmental thresholds
- Remote notifications and escalation paths
- Management-platform integrations
- Sensor placement and coverage
- Leak-detection requirements
- Compatibility with future DC-powered monitoring
- The customer's long-term transition roadmap
As validated DC-compatible products become available for the selected architecture, AC-dependent monitoring devices can be replaced selectively. Because the monitoring layer was designed independently of power distribution, those changes do not require the entire sensing architecture to be rebuilt.
The layer can also expand as operational requirements change. Additional environmental sensors can extend rack coverage, while facility-scale leak-detection systems can address raised-floor areas where point sensors are no longer sufficient.
This is the lifecycle value of DPIM: monitoring is designed, procured, installed, and managed as part of the customer's broader infrastructure plan rather than treated as an isolated hardware purchase.
Planning Lessons for Infrastructure Teams
This project highlights five practical questions for teams preparing an OCP ORV3 transition or another rack-power modernization:
What Secondary Functions Will Disappear?
Identify the sensing, alerting, and management capabilities attached to equipment scheduled for removal.
Which Operational Layers Should Remain Independent?
Separating monitoring from power distribution can preserve visibility while the power architecture changes.
Which AC Dependencies Remain?
Document the switches, controllers, and monitoring devices still supported by rackmount inverters or other AC sources.
How Much Leak Coverage Is Required?
Compare targeted point detection with continuous sensing based on the physical area, potential water sources, and required leak-location visibility.
How Will the System Be Validated?
Define threshold testing, notification routes, escalation paths, integrations, and future compatibility before operational handoff.
A transition-ready design accounts for both the target architecture and the systems that must remain operational on the way there. That discipline helps modernization proceed without sacrificing the environmental visibility teams use to protect the environment.
Key Takeaways
- Removing intelligent rack PDUs can also remove temperature, humidity, and leak-monitoring functions.
- A standalone monitoring layer can preserve environmental visibility independently of rack power distribution.
- Mixed AC/DC environments require validation of power, sensor topology, integrations, and future platform compatibility.
- Point leak sensors and continuous sensing cable address different coverage requirements.
- DPIM connects the immediate monitoring need with installation quality, operational validation, and the longer-term transition roadmap.
Frequently Asked Questions
What environmental monitoring risk can arise when intelligent rack PDUs are removed?
If temperature, humidity, or leak sensors depend on the intelligent rack PDUs, removing those PDUs can also remove the associated environmental readings and alerts. The affected functions should be identified and replaced as part of the transition plan.
Why separate environmental monitoring from rack power distribution?
An independent controller-and-sensor layer can preserve environmental visibility while the rack power architecture changes. It also allows monitoring components to be evaluated and replaced separately as validated DC-compatible options become available.
Can standalone monitoring support a mixed AC/DC rack environment?
Yes, when the controller power, sensor topology, integrations, and device compatibility are validated for the environment. In this case, the independent monitoring layer supported operations while some switches and monitoring devices still depended on AC power.
When should teams consider continuous leak-sensing cable instead of point sensors?
Point sensors suit targeted locations. Larger or more complex underfloor areas may require continuous sensing cable and a distance-read controller for broader coverage and greater leak-location visibility. The decision depends on the physical environment, potential water sources, integration needs, and required coverage.
